Technical Specifications

Load-in Details

LOCATION
STOCKTON UNIVERSITY
101 VERA KING FARRIS DRIVE
GALLOWAY, NJ 08205



GPS COORDINATES
39°29’29.3″N 74°32’01.1″W

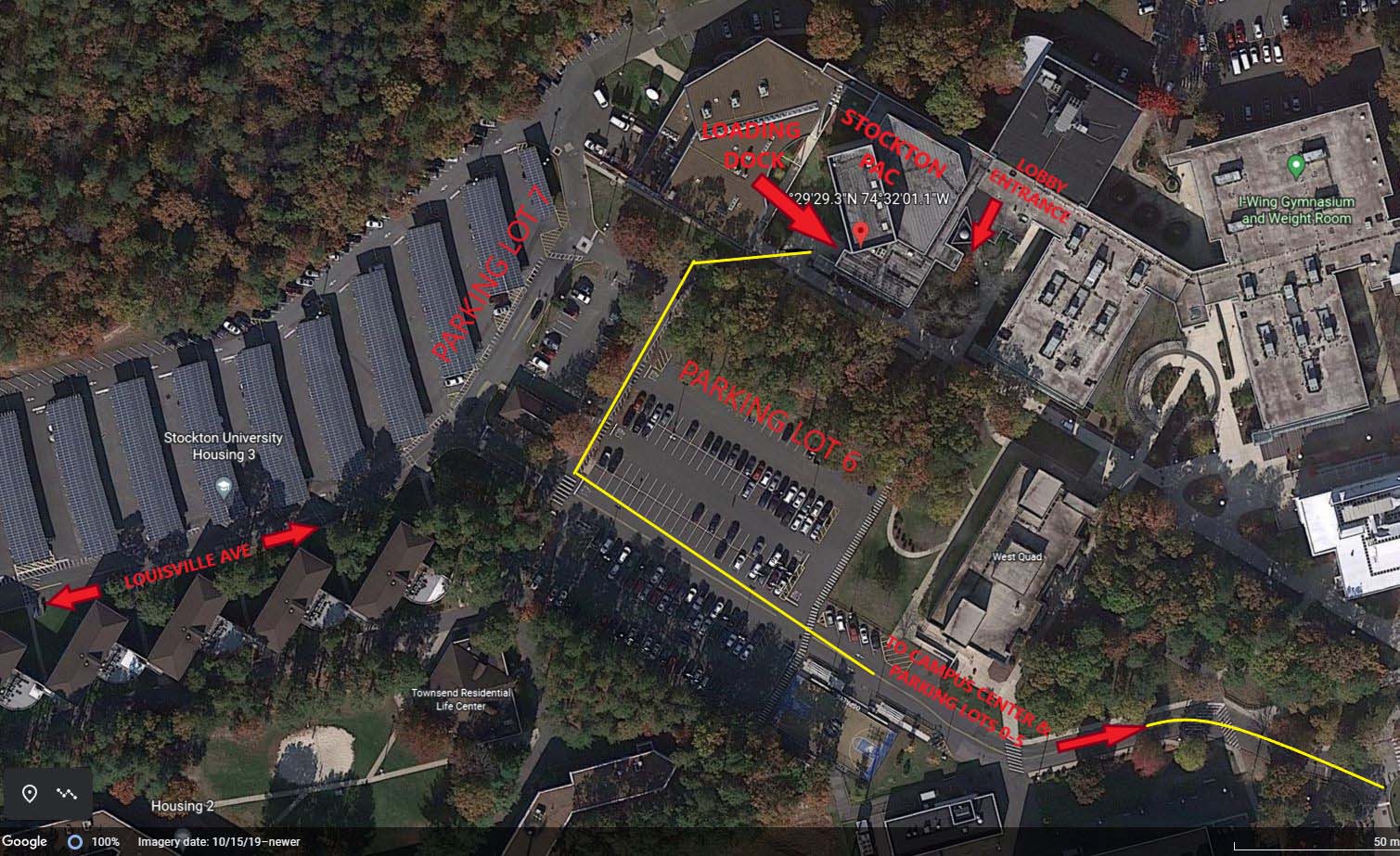

Directions to Campus

FROM NORTH
Take Garden State Parkway south. Take exit 44. Turn right onto Pomona Road. Go 1/2 mile. Make left onto Vera King Farris Drive. Turn right into parking lot 5 and follow signs for parking lot 7.


FROM WEST
Take Atlantic City Expressway to exit 12. Turn left. Proceed straight and pass light at Route 30 (White Horse Pike) to next light at Jimmie Leeds Road. Turn right, go 1 mile on Jimmie Leeds Road and make a left onto Vera King Farris Drive. Continue about 1/2 mile and turn left Louisville Lane and follow road into parking lot 7.


FROM SOUTH
Travel north on the Garden State Parkway and take Exit 41. At the light at the end of the Exit 41 ramp, turn left onto W. Jimmie Leeds Road. Travel 1 mile to the entrance sign for Stockton University, turn right onto Vera King Farris Drive. Continue about 1/2 mile and turn left Louisville Lane and follow road into parking lot 7.

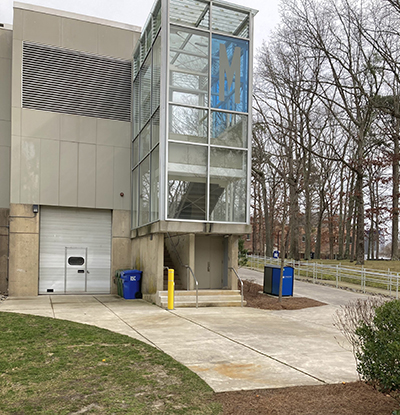

Building Access

Door:

10′ X 12′

Access:

Ground level through fully equipped scene shop (35′ to stage)

Accommodate:

1- 48′ Tractor-trailer (additional parking in college lot)

Equipment:

Forklift and ramps NOT available

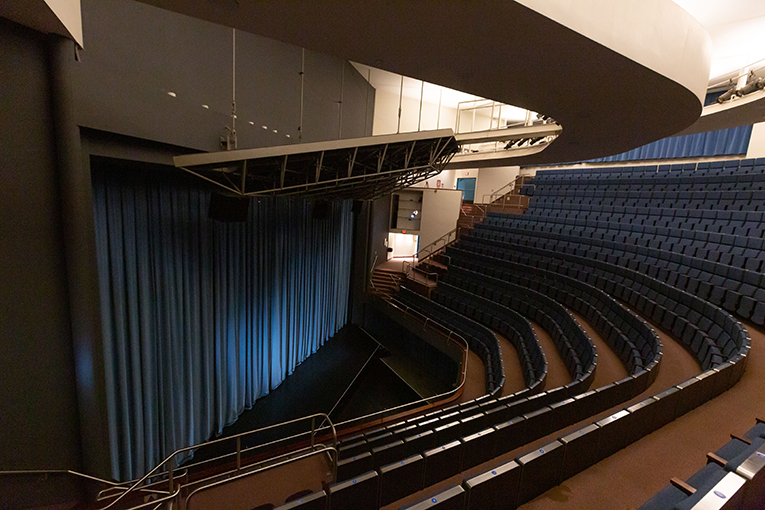

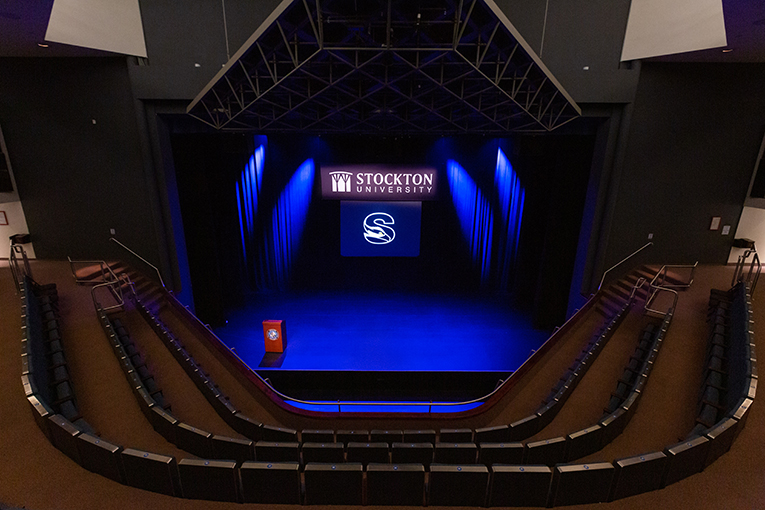

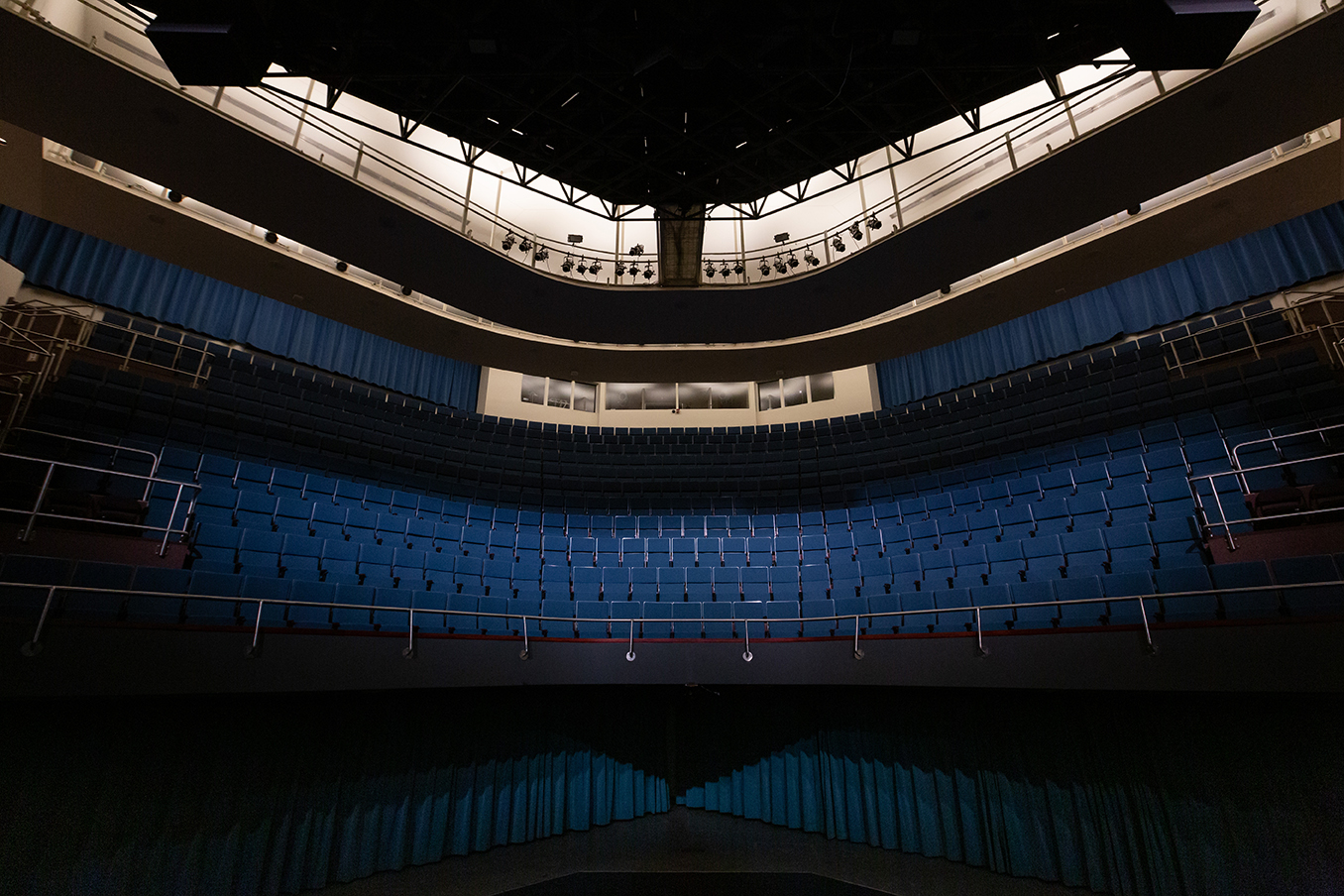

Stage Dimensions



STAGE

  • Type: Proscenium
  • Capacity: 550
  • Standing room: 50 in orchestra pit (when available)
  • Dimensions:
    • Proscenium
      • Height: –28’
      • Width: –48’

    • Stage Depth (usable floor space)
      • Proscenium to back wall: –35’
      • Proscenium to cyc: –29’

    • Stage Width (usable floor space)
      • Center line to SR wall: –58’ (10’ wing)
      • Center line to SL wall: –64′ (16’ wing)


APRON

  • Depth from curtain line to furthest down stage edge: –9’
  • Width at Proscenium: –48’
  • Width at furthest down stage edge: –20’



FLOOR

  • Masonite over plywood, air space beneath (nails, screws, etc, permitted)
  • Quietstep vinyl dance floor available (color: black)
  • Crossover: 3’ wide behind cyc and/or through dressing room hallway

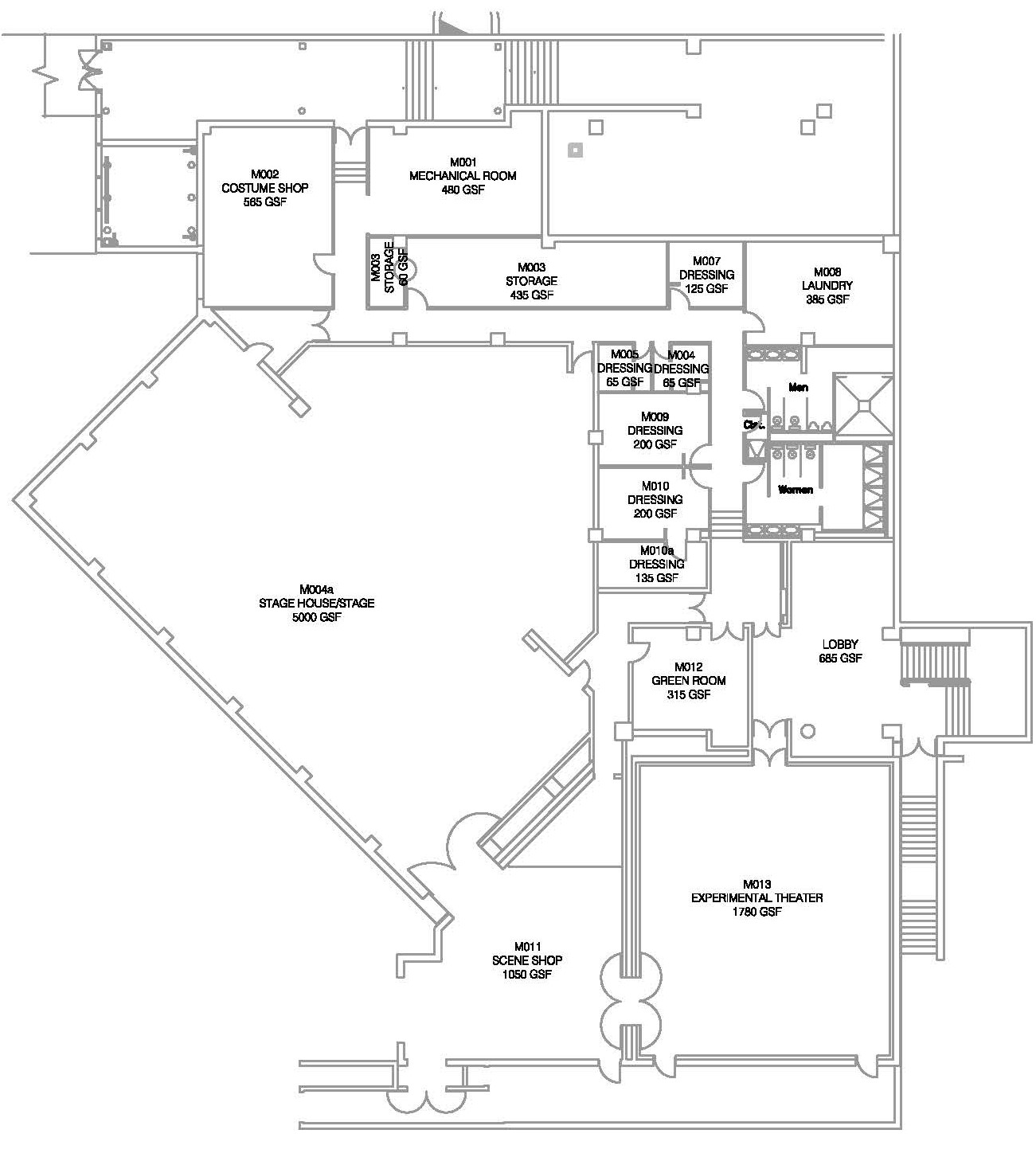

DRESSING ROOMS

  • Stage level. Each room equipped with lights, mirrors, sink, shelving, and clothes racks.

  • Four rooms accommodating 45 performers as follows:
    • Room 010 – 22 persons
    • Room 009 – 15 persons
    • Room 007 – 6 persons
    • Room 004 – 2 persons
  • The following amenities are available off the dressing room hallway:
    • Laundry/Wardrobe Facility
    • Showers
    • Lavatory
    • Green Room

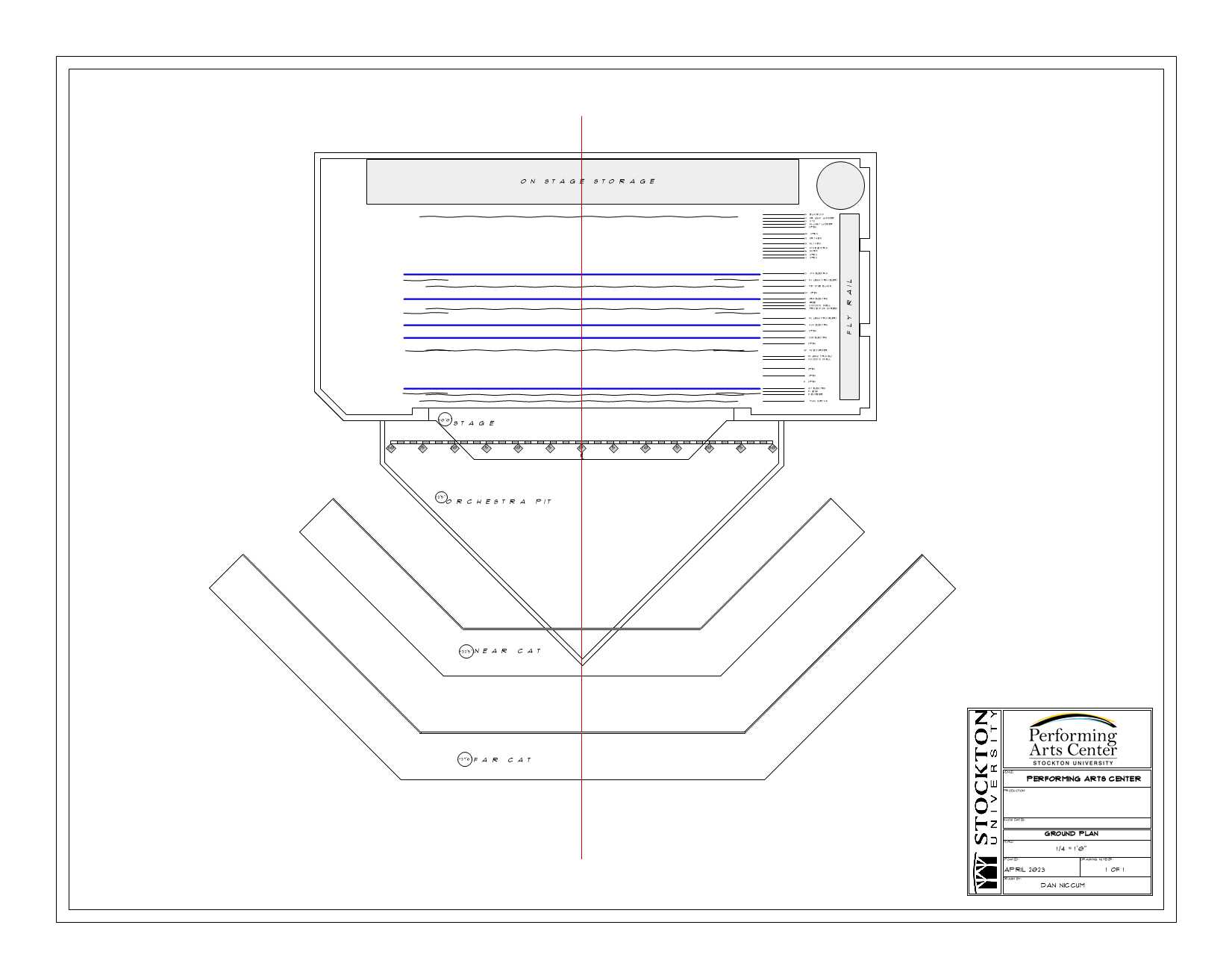

GROUND PLAN

GROUND PLAN

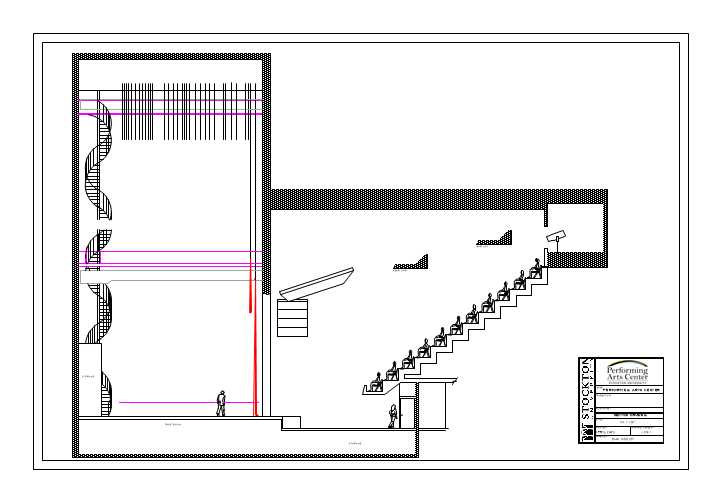

SECTION DRAWING

SECTION DRAWING

Lighting



COMPANY SWITCH

  • 3 legs at 60 amps each (three phase) SR wing
  • 3 legs at 200 amps each (three phase) SR wing



CONTROL CONSOLE

  • ETC Ion
  • (42) Dimmers (36 at 7K and 6 at 12K)
  • Traditional “operators” patch panel on SR catwalk.



CONNECTORS

  • (20) amp twist lock (pin in)



HANGING POSITIONS

  • Overhead
    • 1st Electric: (22) circuits
    • 2nd Electric: (12) circuits
    • 2A Electric: (6) circuits
    • 3rd Electric: (18) circuits
    • 4th Electric: (41) circuits

  • Side
    • Counter-weighted light ladders spanning four wings SR and SL (12 circuits each ladder [3 each wing])
    • Box Boom type position SR and SL for apron side light (Does not effectively light upstage of proscenium) (6 circuits each)
    • (4) Floor pockets each SR and SL (12 each side)

  • FOH
    • Near catwalk (above audience - 24 circuits)
    • Far catwalk (above audience - 24 circuits) *Note: This is not an effective position for areas upstage of the proscenium.



EQUIPMENT

  • (20) ETC Colorsource PAR Deep Blue
  • (4) Chauvet Professional Rouge R2 Wash
  • (7) Altman Spectra Cyc 200
  • (102) ETC Source Four 575w
  •  (14) Kliegl 8” Fresnel
  • (30) Altman 8” Fresnel
  • (26) Kliegl 6” Fresnel
  • (60) PAR 64
  • (2) Lycian M2 Follow Spots (1200w HMI Lamp)


LENSES

  • (25) 19 Degree
  • (11) 26 Degree
  • (48) 36 Degree
  • (34) 50 Degree


MISCELLANEOUS

  • Cables and twofers, etc. available
  • (6) City Theatrical Show Baby 6
  • (16) Wybron CXI
  • Roscolux and/or Lee filters available
  • GS-1930 Genie Lift available for focus
  • (8) 8’ Booms available

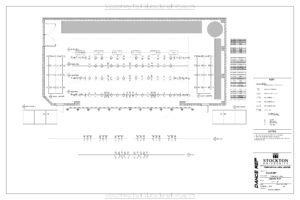

STANDARD REP PLOT:

STANDARD REP PLOT



LIGHTWRIGHT PAPERWORK:

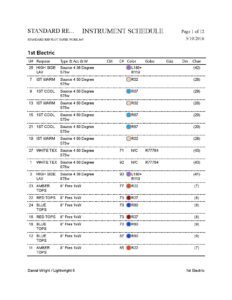

INSTRUMENT SCHEDULE

INSTRUMENT SCHEDULE

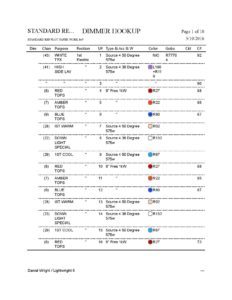

DIMMER HOOKUP

DIMMER HOOKUP

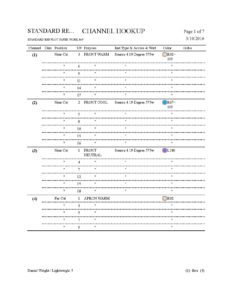

CHANNEL HOOKUP

CHANNEL HOOKUP

*Vectorworks and Lightwright Files Available By Request

Audio



MIXER

  • 32 channel Behringer X32
  • one house mix in mono to central cluster
  • identical mix in stereo to aux. speaker system
  • six mixes available at the stage



AMPS

  • QSC amps (main cluster) Crown/Altec amps (monitors/aux)



SPEAKERS

  • (3) EAW in a center cluster
  • (4) JBL as aux. stereo system
  • EAW, JBL, and available as monitors



PLAYBACK

  • (2) CD players
  • (1) iMac with Qlab



MICROPHONES

  • (6) Sennheiser G3 Wireless Receivers
    • (6) E865 Wireless Handhelds
    • (6) SK300 Body Packs
      • (6) Countryman E610, Color Tan
  • (5) Crown PCC
  • (9) Shure SM57
  • (4) Shure SM58
  • (11) Shure Beta 58
  • (4) Shure SM81
  • (1) Shure Beta 52A
  • (4) Sennheiser E604
  • (2) AKG C451
  • (2) Beyer Dynamics M88
  • (2) Audio Technica AT897
  • (2) Audix SCX25A
  • (2) EV RE-20



MISCELLANEOUS

  • Direct Boxes
  • PC DI
  • Sub Snakes
  • XLR (various lengths)



COMMUNICATIONS

One channel Clearcom Headset system with stations Stage Right, Stage Left, House Center, Control booths (audio, lights, follow spot), and Patch panel

Rigging



TYPE:

Single purchase "T" bar counterweight

ARBORS:

12'

HEIGHT TO GRID:

65'0"

LOCKING RAIL:

Stage Level SL

LOADING RAIL:

35 (includes 4 that run up/down stage for side lights and tabs)

AVAILABLE WEIGHT:

4000+ lbs

MASKING

LEGS (4 SETS):

Color/Material:

Black/Velour

Control:

Adjustable (from 4' to 12') on traveler tracks via tiller-line


BORDERS (3 SETS):

Color/Material:

Black/Velour


CYC:

Color/Material:

White/Leno (filled scrim)


SCRIM:

Color/Material:

Black/Shark's Tooth



LINE SET SCHEDULE

LINE SET NUMBER

FEET FROM PLASTER LINE

REP HANG

AVAILABILITY FOR OTHER USE

35

30’9”

BLACK OUT CURTAIN

YES

34

US/DS

SR LIGHT LADDER

NO

33

29’9”

CYC

YES

32

US/DS

SL LIGHT LADDER

NO

31

29’0”

SCRIM

YES

30

28’0”

FREE

YES

29

US/DS

SR TABS

NO

28

US/DS

SL TABS

NO

27

25’9”

FREE

YES

26

25’3”

FREE

YES

25

24’9”

FREE

YES

24

24’3”

FREE

YES

23

21’9”

4TH ELECTRIC

NO

22

20’9”

4TH LEGS

NO

21

19’9”

MID STAGE BLACK

YES

20

18’9”

FREE

YES

19

17’9”

3RD ELECTRIC

NO

18

17’3”

FREE

YES

17

16’9”

ACOUSTIC SHELL

NO

16

16’3”

PROJECTION SCREEN

NO

15

14’9”

3RD LEGS

NO

14

13’9”

AUX ELECTRIC

YES

13

12’9”

FREE

YES

12

11’9”

2ND ELECTIC

NO

11

10’9”

FREE

YES

10

9’9”

BOARDER

NO

9

8’9”

2ND LEGS

NO

8

8’3”

ACOUSTIC SHELL

NO

7

6’9”

FREE

YES

6

5’9”

FREE

YES

5

4’9”

FREE

YES

4

3’9”

1ST ELECTRIC

NO

3

3’3”

1ST LEGS

NO

2

2’9’

BOARDER

NO

1

1’9”

HOUSE CURTAIN

NO
